Bridge Construction

The new bridge will be a 2-lane structure with 10-foot lanes, 2-foot shoulders with appropriate curve widening, and 2' railing offsets. Bridge construction will consist of precast, pre-stressed concrete bulb-teen girders set on cast-in-place concrete abutments founded on steel piles. Upon the precast girders, a single-span cast-in-place concrete deck. will be constructed.

The new bridge approach realignment shifts the roadway to the south of the existing alignment, with the new bridge about 600 feet south (downstream) of the existing bridge.

The location of the realignment was selected to follow the existing topography where the slopes are less steep, allowing the road to have a maximum grade of 10% and a minimum design radius of 350 feet, consistent with AASHTO guidelines.

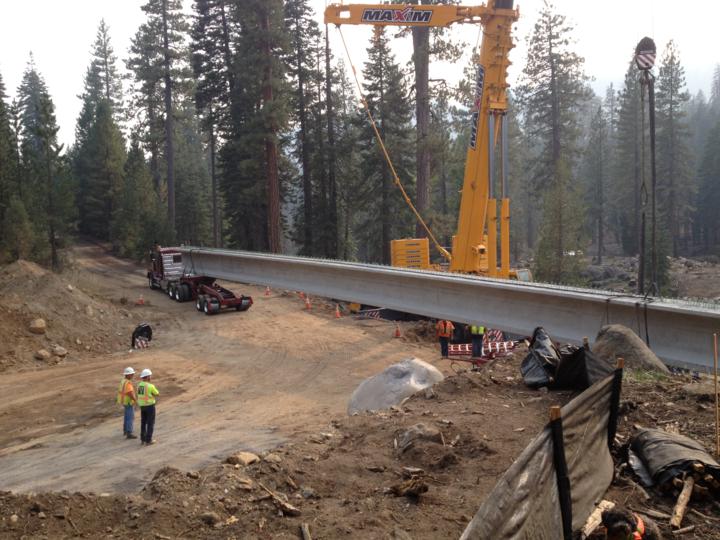

IMG_1661_720x540.jpgOne of four precast girders moving into place to be lifted by cranes onto the abutments.

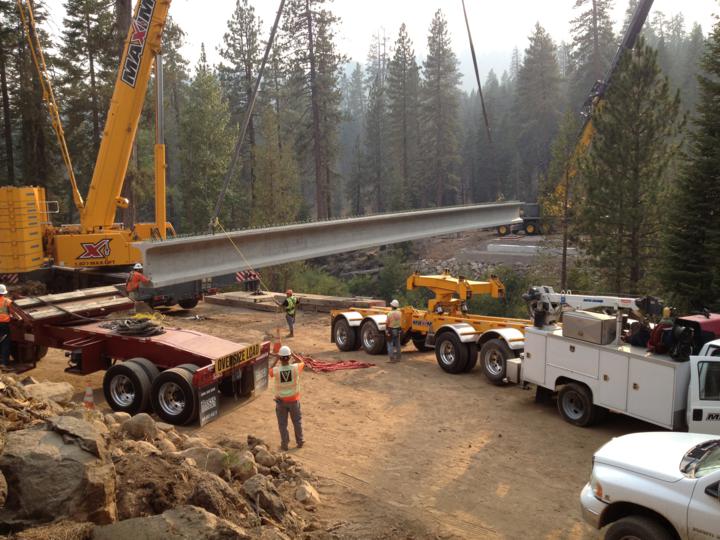

IMG_1665_720x540.jpgA 500-ton crane lifts the beam moving it to a staging position.

IMG_1669_720x540.jpgWith the girder in the staging position, a 275-ton crane is hooked to the girder, and the 500-ton crane is then connected to one end only.

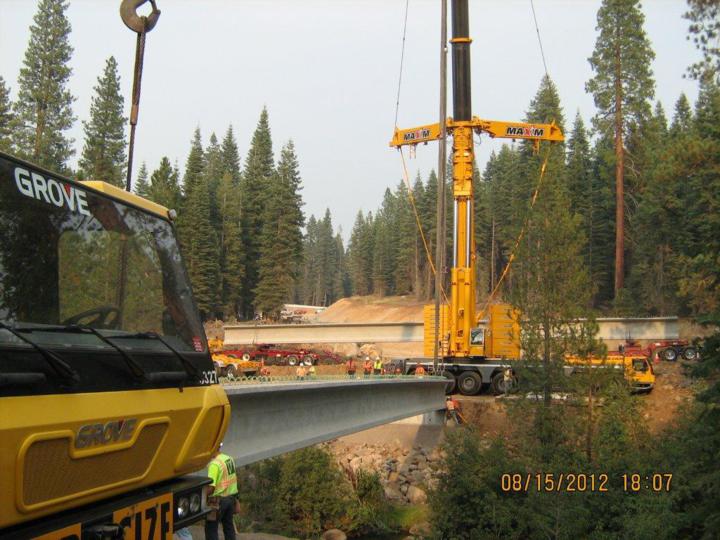

067_720x540.jpgThe two cranes lift the girder into its final position.

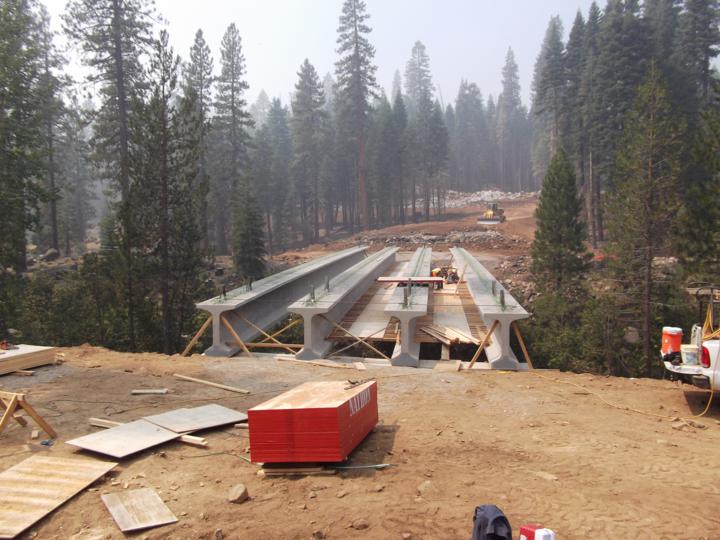

DSCF0877_720x540.jpgWith the four girders now in place on the abutments, work to form the concrete deck begins.
